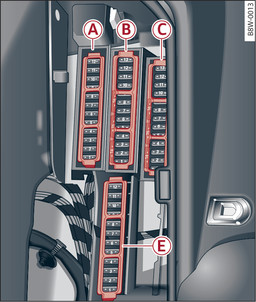

- Fig. 328 Luggage compartment, left side: Fuse carrier with plastic frames
Fuse carrier -A- (black) | |
No. | Electrical equipment |
2 | Windscreen heating |
3 | Windscreen heating |
5 | Suspension control |
6 | Automatic gearbox |
7 | Rear window heating |
8 | Seat heating, rear |
9 | Rear lights (left-side) |
10 | Belt tensioner (left-side) |
11 | Central locking system |
12 | Power-operated boot lid |
Fuse carrier -B- (red) | |
No. | Electrical equipment |
Not used | |
Fuse carrier -C- (brown) | |
No. | Electrical equipment |
2 | Telephone |
3 | Lumbar support |
4 | Audi side assist |
5 | Preparation for Rear Seat Entertainment |
6 | Tyre pressure monitoring system |
7 | NFC for unlocking/starting vehicle |
8 | Remote control receiver, auxiliary heater |
10 | TV tuner |
11 | Control unit for additional battery |
12 | Garage door opener |
13 | Reversing camera, surround view cameras |
14 | Right rear lights |
16 | Belt tensioner (right-side) |
Fuse carrier -E- (red) | |
No. | Electrical equipment |
2 | Sound amplifier |
3 | AdBlue heating |
5 | Towing bracket (right lights) |
7 | Towing bracket |
8 | Towing bracket (left lights) |
9 | Towing bracket (electrical socket) |
10 | Sport differential |
11 | AdBlue heating |
