Applies to: vehicles with bulbs

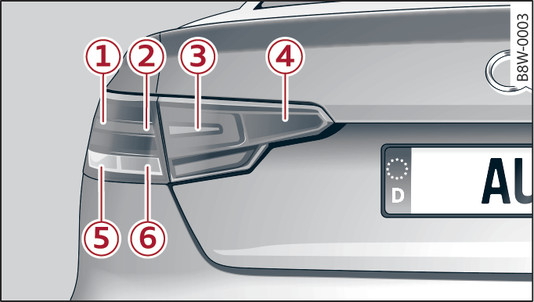

- Fig. 330 Applies to: SaloonRear of vehicle: Overview of bulbs in side panel and boot lid

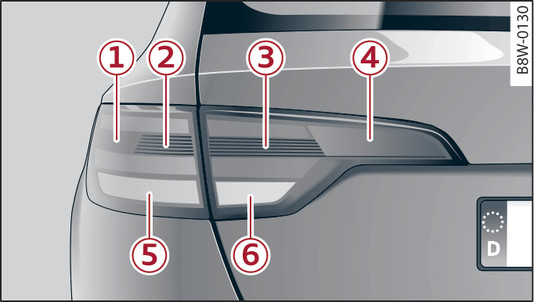

- Fig. 331 Applies to: Avant/allroadRear of vehicle: Overview of bulbs in side panel and boot lid
You must only replace a bulb with a bulb of the same type. Information regarding e.g. the wattage can be found on the bulb.
The description for changing the bulb refers to the left rear light unit; the procedure for the right rear light unit is similar.
You can change the following bulbs:
Applies to: Saloon
Bulb (12 V) | Version |
-1- Brake light/tail light | P21W |
-2- Brake light/tail light | P21W |
-3- Tail light | W16W |
-4- Rear fog light1) | H21W LL HTR |
-5- Turn signal | PY21W |
-6- Reversing light | W16W |
Applies to: Avant/allroad
Bulb (12 V) | Version |
-1- Brake light/tail light | W16W |
-2- Brake light/tail light | W16W |
-3- Tail light | W16W |
-4- Rear fog light1) | H21W |
-5- Turn signal | PY21W |
-6- Reversing light | W16W |
