Applies to: vehicles with xenon headlights

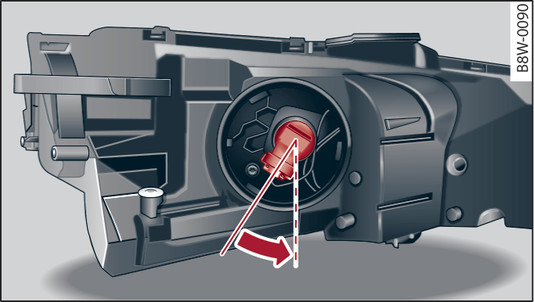

- Fig. 333 Headlight: Removing all-weather light

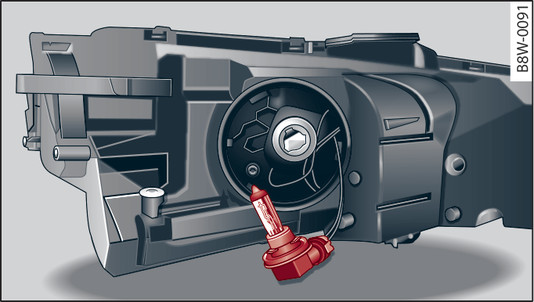

- Fig. 334 Headlight: Bulb holder for all-weather light
Removing
Turn the plastic connector with the bulb anti-clockwise so that it is released from its seat Fig. 333►.
Remove the connector from the headlight housing with the bulb Fig. 334►.
Unplug the electrical connector.
Installing
Insert the new bulb correctly into the connector ►.
Guide the connector with the bulb into the housing and turn it clockwise as far as the stop.
Put the cover back on.
Check whether the new bulb is working.
