►Audi A4 ►Self-help ►Fuses and bulbs ◀Changing bulbs for rear...
Applies to: vehicles with bulbs

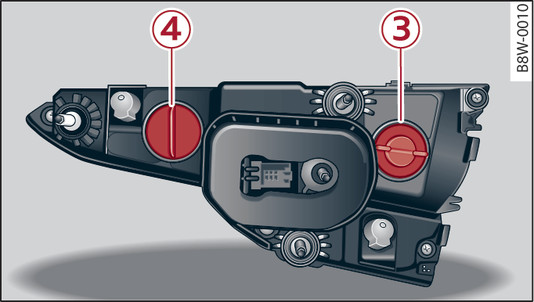

Fig. 341 Applies to: Saloon Rear light: Position of the bulbs
Fig. 341
Applies to: Saloon
Rear light: Position of the bulbs

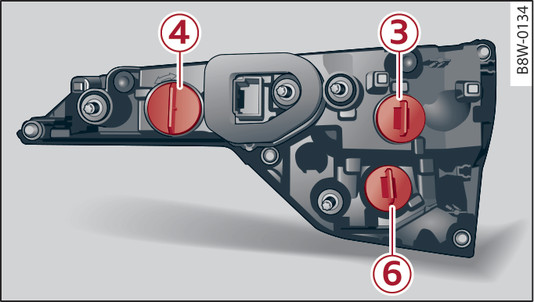

Fig. 342 Applies to: Avant/allroad Rear light: Position of the bulbs
Fig. 342
Applies to: Avant/allroad
Rear light: Position of the bulbs
Removing
Remove the rear light unit from the boot lid link►.
Turn the defective bulb to remove it from the bayonet holder.
Installing
Turn the new bulb to secure it in the bayonet holder.
Re-install the rear light.
Applies to: Saloon
Position Fig. 341►
Bulb function
-3-
Tail light
-4-1)
Rear fog light
Applies to: Avant/allroad
Position Fig. 342►
Bulb function
-3-
Tail light
-4-1)
Rear fog light
-6-
Reversing light
